Average shear stress in pressure vessel
Contents [show]
A pressure-vessel head is fabricated by gluing the circular plate to the end of the vessel. If the vessel sustains an internal pressure of 500 kPa, determine the average shear stress in the glue.
Solution
The force that is normal to the vessel’s head is P = τανg(2π)(0.225) * (0.01) where τανg is the average shear stress.
SFy = 0 -> π(0.225)2*500*103 - τανg(2π)(0.225)*(0.01) = 0
τανg = 11.25Mpa
Selected Topics
Calculation Example: Natural Periods of Vibration for SystemsCalculation Example: Axial Force On A ColumnCalculation Example: Shear force On A ColumnCalculation Example: Overturning Moment for Shear panelCalculation Example: Calculate the Change in Length of a Rod loaded in extensionCalculation Example - Calculate the Axial Forces on the Truss MembersCalculation Example - Calculate the member diagramsCalculation Example - Calculate the member diagrams for the beamCalculation Example – Beam with inner hinge (Part A). Find the ReactionsCalculation Example – Beam with inner hinge (Part B). Calculate the member diagrams.Calculation Example – Frame analysis.Calculation Example – Frame analysis – Uniform LoadCalculation Example – Find the Center of Gravity (Surface)Calculation Example – Design bolted connection of tension plates (EC3)Calculation Example – Cantilever BeamCalculation Example – Cantilever Beam, Temperature changeCalculation Example – Undamped free Vibration (Part A).Calculation Example – Undamped free Vibration (Part B).Calculation Example – Evaluation of Structural Property Matrices.Calculation Example – Angular acceleration, angular velocity.Calculation Example – Shear bolt connection EC3.Calculation Example – Buckling of Column (EC3).Calculation Example - Calculate the member diagrams.Calculation Example - Calculate the member diagrams.Calculation Example - Calculate the equation of the elastic curve.Calculation Example - Calculate the location of support.Calculation Example – Plane stress.Calculation Example - Annular cross section, Stress.Calculation Example – Allowable shear force for the girder.Calculation Example - Calculate the deflection. Castigliano Theorem.Calculation Example – Determine the shear force and moment.Calculation Example – Determine the magnitudes of F1,F2.Calculation Example – Internal forces.Calculation Example - Calculate the Axial Forces of the Truss Members.Calculation Example – Calculate the moments of inertia Ix and Iy.Calculation Example – Calculate shear stress for temperature load.Calculation Example – Calculate tension force using virtual work.Calculation Example – Torsional moment-Stress.Calculation Example – Reinforced Concrete Column at Stress.Calculation Example – Cantilever Beam with uniform loading.Calculation Example – Cantilever Beam with point loads.Calculation Example – Rod loadingCalculation Example – Maximum DeflectionCalculation Example – Member Diagram.Calculation Example – Minimum allowable Diameter.Calculation Example – Critical load.Calculation Example – Simple harmonic vibration part1Calculation Example – Simple harmonic vibration part 2Calculation Example – FrictionCalculation Example – Section Modulus SCalculation Example – Plastic Neutral Axis.Calculation Example – Buckling of Column (EC3).Calculation Example – Shear bolt connection EC3.Calculation Example – Member Diagram. Triangular load.Calculation Example – Torsional moment-Stress.Calculation Example – Angular acceleration, angular velocity.Calculate the location of point loadShear bolt connection EC3Torsional Moment-StressCalculate the Axial Forces of the Truss MembersCalculate the Maximum Shear StressHow to calculate yield strengthCalculate angular velocity, angular accelerationTemperature ChangeAllowable shear force of the girderCalculation ExamplesCalculate the variation in length of the rodSpring Assemblies in Series/Parallel: Two Springs in SeriesTruss vs CableCalculate the vertical deflection of a beamFlexular Crack in Concrete BeamMaximum Factored Vertical ShearColumn in bucklingBeams: maximum momentNominal flexural strength of a reinforced concrete beamCalculation of the cross-sectional area and the position of centroidCalculation of the second moments of areaExample: longitudinal reinforcement for shear and torsion according to EC2
Want to read more like this?

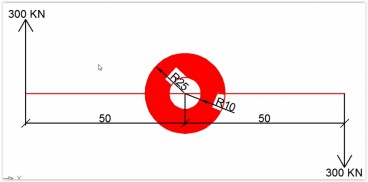

Calculation Example – Minimum allowable Diameter.
May, 04, 2018 | EducationDetermine the minimum diameter of the rod. The axial tensile force is P=10KN. The allowable stresse...
How to calculate yield strength
Aug, 05, 2019 | EducationThe stress-strain diagram for a steel rod is shown and can be described by the equation ε=0.20(1e-06...

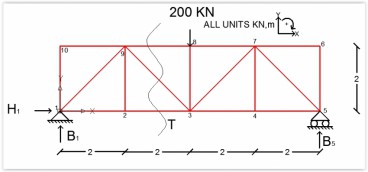

Calculate the Axial Forces of the Truss Members
May, 16, 2019 | EducationFind the axial forces of the members 2-3, 9-3 of the truss for the given loads. Solution...
Truss deflection using the unit load method
Aug, 28, 2023 | EducationGiven: A pin-jointed truss is given in Figure 1. Determine the vertical displacement of join...
Calculation Example – Frame analysis.
Apr, 13, 2016 | EducationCalculate the reactions and member forces. Solution We calculate the reactions. Section 1 0...
Calculation Example – Frame analysis – Uniform Load
May, 09, 2016 | EducationCalculate the reactions and member forces. Solution We calculate the reactions. ...

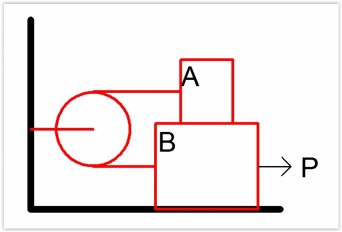

Calculation Example – Friction
