Easy to use Finite Element Analysis software for 2D and 3D frames and trusses including structural optimization of cross sections. Large library of cross sections included: US AISC, UK British Steel, Eurocode, Australia and New Zealand, China GB, Russia GOST, India BIS, Japan JIS and TimberDownload Documentation
Powerful Finite Element Analysis software for Structural and civil Engineering of Steel constructions like Trusses or Frames.
Compact and easy to use FEA analysis, with a user-friendly Windows interface to make your life easy.
Engineering calculator with large library of commonly used cross sections included (US AISC, UK British Steel, Eurocode, Australia and New Zealand, China GB, Russia GOST, India BIS, Japan JIS and Timber). This list can be easily expanded or amended to fit your needs.
Analysis3D also includes the option to calculate and add wind loads, snow loads and seismic loads according to different standards: Eurocode and ASCE 7-16.
Nonlinear or 2nd order Calculation that takes into account the deformed structure and incrementally calculates the total effect on the structure.
Structural Steel Design that includes: AISC-ASD89, AISC-LRFD93, BS5950, CISC94 and EuroCode 3 to improve and optimize the members of the structure. Analysis3D validates the strength of each member and proposes the minimal Cross Section for the loads applied.
Next to the help files and the comprehensive user's manual, several examples are included to help you getting started

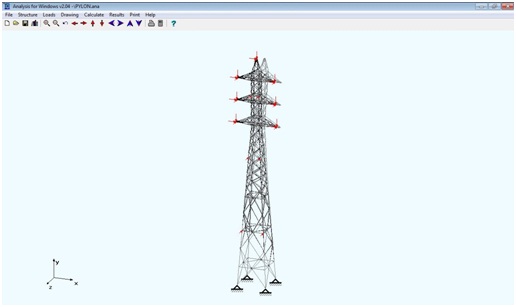

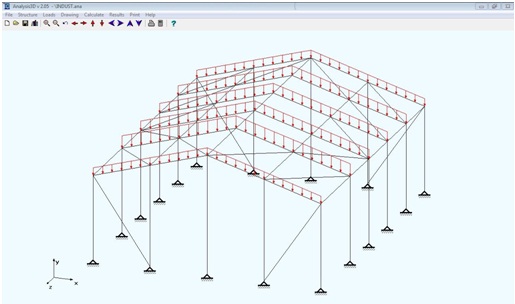

The Displacement of the construction is visualized automatically on the screen. Members that fail the requirements are indicated in red

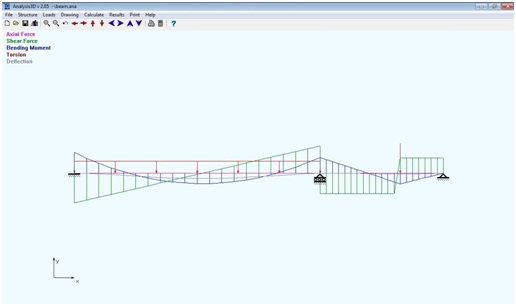

All member forces and member stresses can be visualized easily

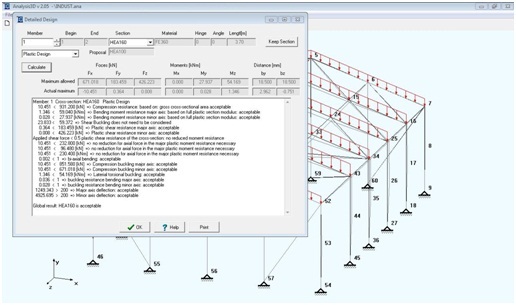

Detailed Structural Steel Design is included with AISC-ASD, AISC-LRFD, BS5950, CISC94 and EuroCode 3. Analysis3D recommends the minimum cross section for the load applied to help you optimize the beams of the structure.
|Category||Structural design , Structural optimization , Structural Analysis , General Finite Element Programs , Nonlinear analysis , Moment distribution , Steel structures , Structural systems , Beams , Frames , Trusses , Structural stability , Wood Structures|
|Operating Systems||Windows Server 2008, Win95/98, WinNT, Win2000, WinXP, Vista, Win7, Win8, Win10, Win8.1, Win3x|
|Current Version||v 2.11|
|Release Date||2022-06-01 00:00:00|
|Developer Email||[email protected]|
