World’s longest immersed road and rail tunnel also features remarkable design solutions

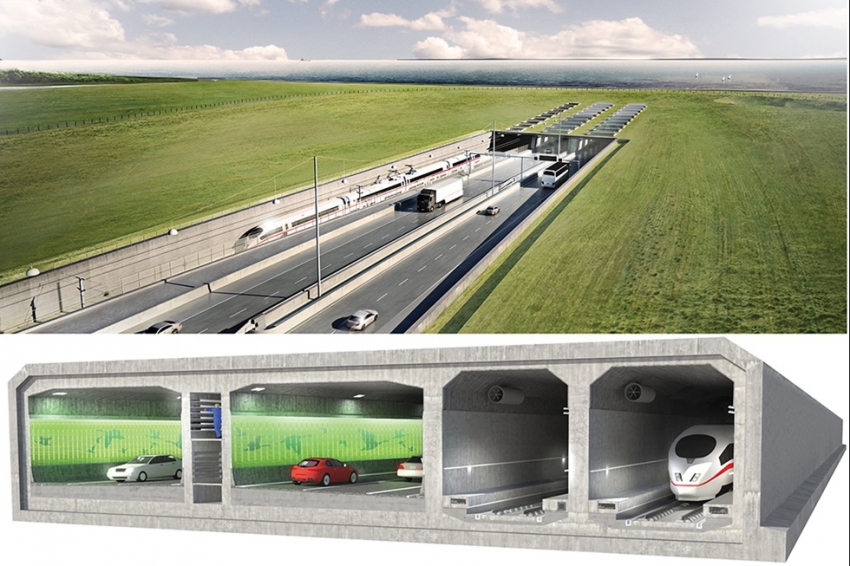

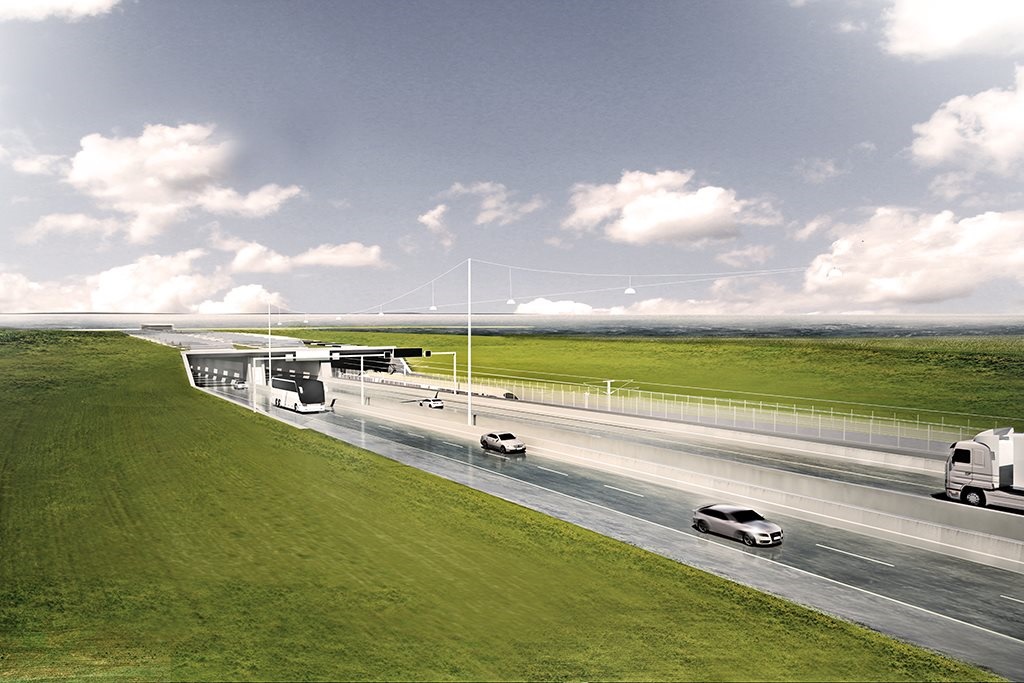

The Fehmarnbelt fixed link in the Baltic Sea will connect the Danish island of Lolland with Germany's Fehmarn island and is expected to boost transportation between central Europe and Scandinavia. Spanning 17.6 km, it will be by far the world’s longest road and rail immersed tube tunnel (IMT), comprising of a four-lane motorway and a double-track railway. The Fehmarnbelt link will cut journeys across the sea from 45 minutes to about 10 by car and 7 by train.

The tunnel has been approved for construction in Denmark since April 2015, but due to the complicated approval process in Germany, the construction process is just about to begin. Its planning and construction is being undertaken by the state-owned Danish company Femern A/S , with a Ramboll / Arup / TEC joint venture serving as the main consultant for the company since 2009, while the cost is estimated at around €4bn.

Extraordinary dimensions

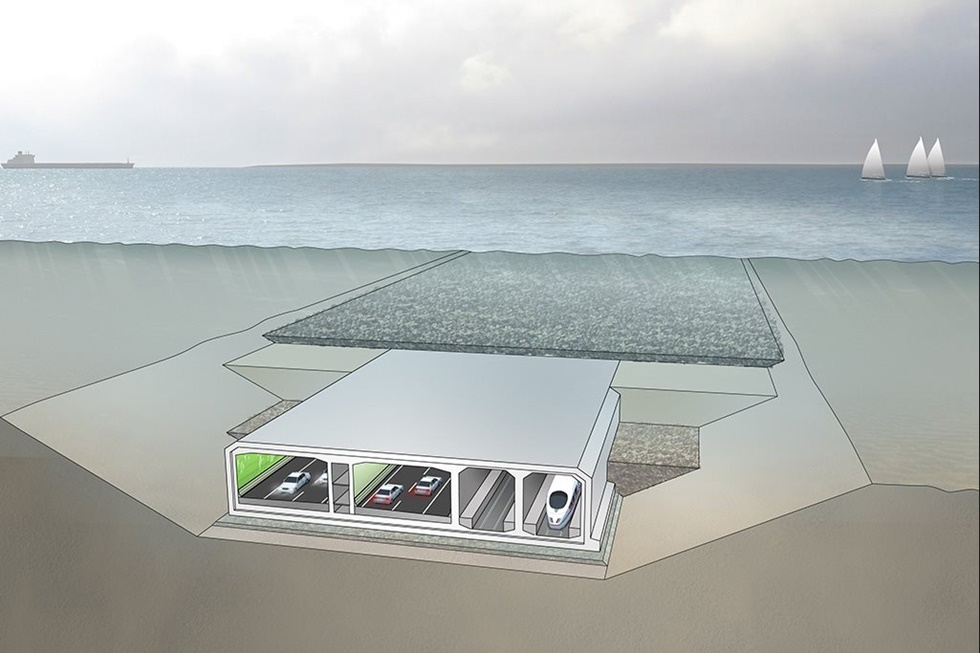

Apart from its record-breaking length (it is more than 5 times longer than the tunnel under the Øresund strait linking Denmark and Sweden), the Fehmarnbelt crossing will also have an impressive width of 42 m! When completed in 2028, it will be one of the deepest tunnels of this type too, as its foundation depths reach more than 40 m below sea level.

Special elements and characteristics

The need to minimize the tunnel’s cross-section, while accommodating the necessary mechanical and electrical systems essential for the tunnel’s operations, led Ramboll company to the solution of installing a total of 10 double-decked ‘special elements’ positioned about every 1.8 km. Each of these elements is 39 m long, 45 m wide, 13 m high and contains an upper road / rail deck level with an installations level beneath. They will also provide other benefits, such as parking access for maintenance vehicles and access to mechanical and electrical equipment without interfering with traffic.

More than 3 million m³ of concrete will be required for the construction of the tunnel, together with the placement of 360,000 tons of reinforcement. In order to make logistics easier, a large harbor will be constructed to house the several batching plants that will provide this massive concrete production and also ensure that cement and aggregates will be available in sufficient quantities.

The way the tunnel will be ventilated is also innovative, as it is designed as a longitudinal system where the need for costly intermediate ventilation shafts has been eliminated. Using sophisticated ventilation modelling and taking into account the growth of traffic in relation to a reduction in car emissions as vehicle technology improves, the ventilation system is expected to keep conditions at globally recognized levels during the whole lifetime of the tunnel.
